Chroma series
Bloom wonderful moment into excellence, reveal our strength and elegance！
Light weight and super slim, saving transport cost.
it can be used for Indoor, outdoor and floor LED display.

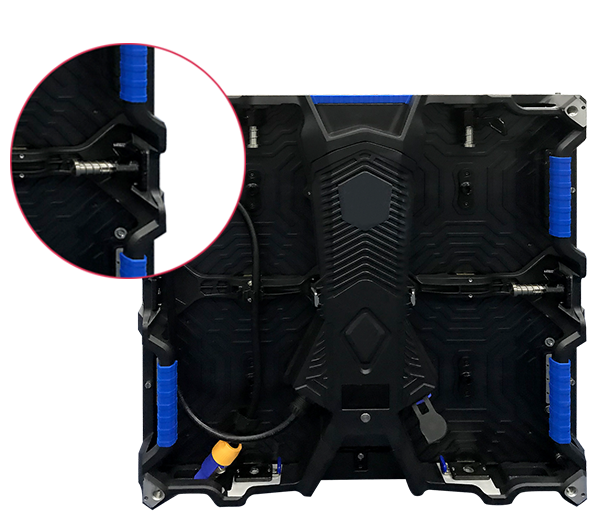

Automatic magnetlock from up and down Fast installation

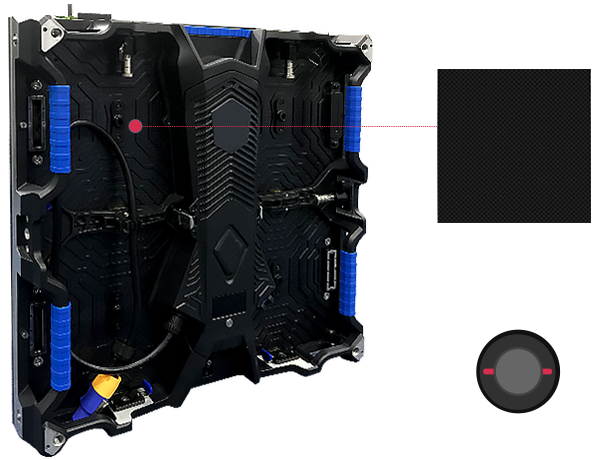

Magnetic module, front service available, easy maintenance.
| Model No. | TC2.9(Indoor） | TC3.91(Indoor） | TC3.91(Outdoor） | TC4.81(Outdoor） |
|---|---|---|---|---|
| Pixel Pitch | 2.9mm | 3.91mm | 3.91mm | 4.81mm |
| LED | SMD2020 | SMD2020 | SMD1921(High frame) | SMD1921(High frame) |
| Module Resolution（dots/㎡） | 84 * 84 | 64 * 64 | 64 * 64 | 52 * 52 |
| Pixel Density | 112896dots/m² | 65536 dots/m² | 65536 dots/m² | 43264 dots/m² |
| Cabinet Resolution（dots/㎡） | 168 * 168 | 128 * 128 | 128 * 128 | 104 * 104 |
| Support hanging or not | YES | YES | YES | YES |
| Best Viewing Angle | H:140°V：120° | H:140°V：120° | H:140°V：120° | H:140°V：120° |
| Max Power Consumption | ≤600w/m² | ≤600w/m² | ≤800w/m² | ≤800w/m² |
| Average Power Consumption | ≤300w/m² | ≤300w/m² | ≤300w/m² | ≤320w/m² |
| Grey Scale | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
| Driving Method | 1/16 scan | 1/16 scan | 1/16 scan | 1/13 scan |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Brightness（cd/㎡） | ≥800 nits | ≥1000 nits | ≥2600 nits( or4500nits) | ≥2600 nits( or4500nits) |
| Protection Level | IP30 | IP30 | IP65 / IP54 | IP65 / IP54 |
