Agate series
Outdoor Fine pixel fixed installation series,with new design of plastic combined with aluminum,makes the cabinet more flat,lighter ,and slim,and it is good for the heat dissipation.
Weight
Thickness

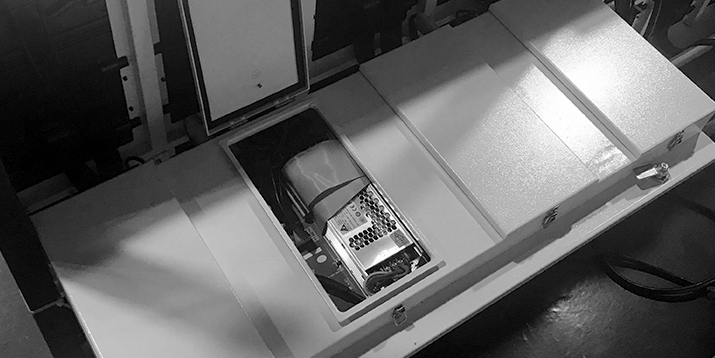

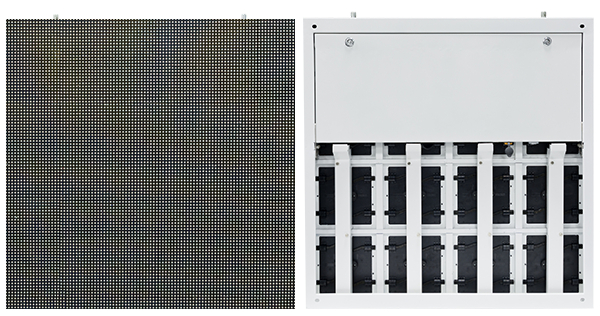

Aluminum with plastic frame of the module Open back cabinet with fan-less design,noiseless,good for the heat dissipation. Special design of energy efficient,Low power consumption.
High-end module,monitor function and calibration memory inside module it can monitor the signal,flat cable,voltage,and drive IC automatic,and modules are identical.

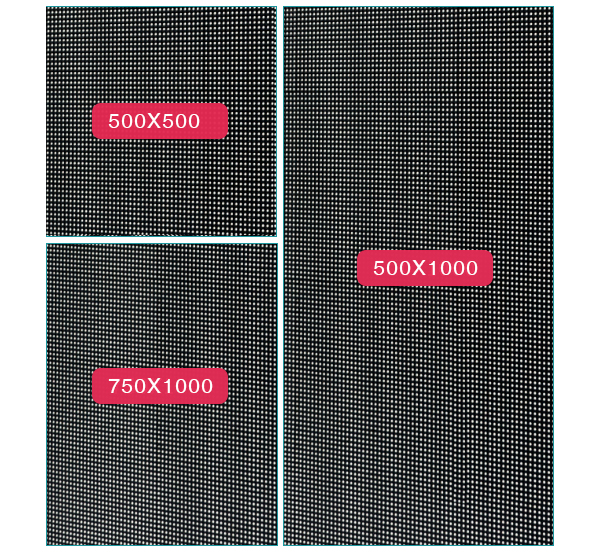

Cabinet size can be customized,500*500, 500*1000 750*1000 are all available.
Quick plug design, high installation efficiency
| Model No. | TA3.9（Outdoor） | TA4.8（Outdoor） | TA5.9（Outdoor） |
|---|---|---|---|
| Pixel Pitch | 3.9mm | 4.8mm | 5.9mm |
| LED | SMD1921 | SMD1921 | SMD2727 |
| Module Size（mm） | 250 * 250 | 250 * 250 | 250 * 250 |
| Module Resolution（dots/㎡） | 64 * 64 | 52 * 52 | 42 * 42 |
| Pixel Density | 65,536dots/m² | 43,264dots/m² | 28,224dots/m² |
| Cabinet Size（mm） | 500*1000/750*1000 | 500*1000/750*1000 | 500*1000/750*1000 |
| Cabinet Resolution（dots/㎡） | 128*256/192*256 | 104*208/156*208 | 84*168/126*168 |
| Support hanging or not | YES | YES | YES |
| Best Viewing Angle | H：140° W：140° | H：140° W：140° | H：140° W：140° |
| Max Power Consumption | 950 W/m² | 950 W/m² | 950 W/m² |
| Average Power Consumption | 320 W/m² | 320 W/m² | 320 W/m² |
| Grey Scale | 14 bits | 14 bits | 14 bits |
| Driving Method | 1/8scan | 1/7scan | 1/6scan |
| Refresh Rate | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Brightness（cd/㎡） | 4500/6000 | 4500/6000 | 6000 |
| Protection Level | IP65 | IP65 | IP65 |
