Wind Series

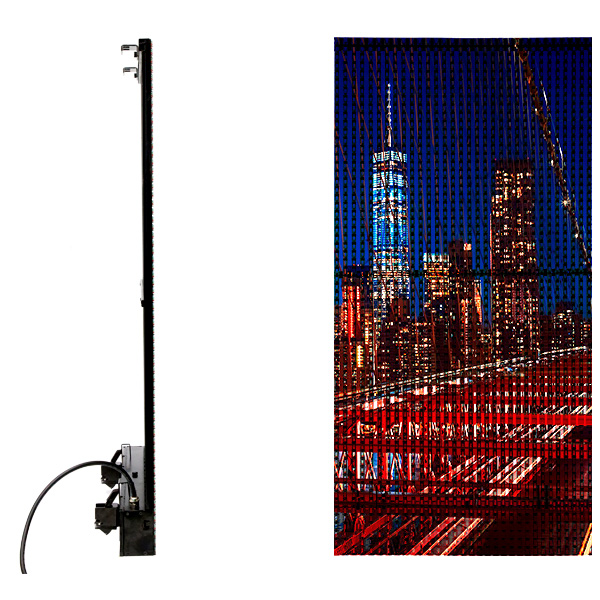

The design of wind series is unique with "light, transparent, fast, stable, provincial and other characteristics, making the world more colorful."
Weight
Thickness
Low power consumption, low heat
Energy conservation and environmental protection
Dual back-up Power supply, every cabinet has two power supplys , if one is out of service
the system will switch to the other one automatically.
No fan design, low temperature running, quiet noiseless.

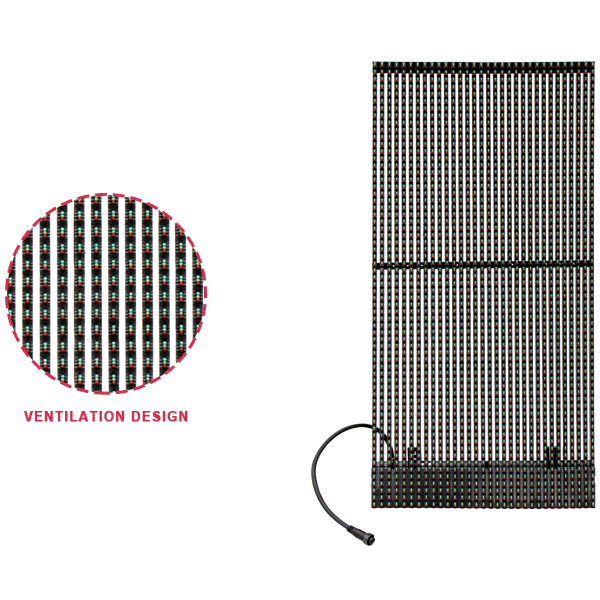

Unique ventilation design, low wind resistance, good heat dissipation.
Save the costs of steel structure and air-conditioned power consumption for cooling.
| Model No. | TW7(Outdoor） | TW12.5(Outdoor） | TW15.6(Outdoor） | TW15(Outdoor） | TW15-31(Outdoor） | TW31.25(Outdoor） |
|---|---|---|---|---|---|---|
| Pixel Pitch | 15.6(H)x7.8(V)mm | 12.5mm | 15.6mm | 15.6mm | 31.2(H)x15.6(V)mm | 31.25mm |
| LED | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 | DIP346 |
| Module Size（mm） | 7.6 * 1000 | 7.6 * 1200 | 7.6 * 1000 | 9.4 * 1000 | 9.4 * 1000 | 9.4 * 1000 |
| Module Resolution（dots/㎡） | 1 * 128 | 1 * 96 | 1 * 64 | 1 * 64 | 1 * 64 | 1 * 32 |
| Pixel Density（dots/㎡） | 8192 | 6400 | 4096 | 4096 | 2048 | 1024 |
| Cabinet Size（mm） | 500 * 1000 | 600 * 1200 | 500 * 1000 | 500 * 1000 | 500 * 1000 | 500 * 1000 |
| Cabinet Resolution（dots/㎡） | 32 * 128 | 48 * 96 | 32 * 64 | 32 * 64 | 16 * 64 | 1 * 32 |
| Support hanging or not | YES | YES | YES | YES | YES | YES |
| Best Viewing Angle | ＜110° | ＜110° | ＜110° | ＜110° | ＜110° | ＜110° |
| Max Power Consumption | 450 W/m² | 400 W/m² | 350 W/m² | 480 W/m² | 400 W/m² | 350 W/m² |
| Average Power Consumption | 135 W/m² | 120 W/m² | 105 W/m² | 145 W/m² | 120 W/m² | 105 W/m² |
| Grey Scale | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits |
| Driving Method | Static | Static | Static | Static | Static | Static |
| Refresh Rate | ≥2000Hz | ≥2000Hz | ≥2000Hz | ≥2000Hz | ≥2000Hz | ≥2000Hz |
| Brightness（cd/㎡） | 6500 | 6000 | 5500 | 8500 | 6000 | 6000 |
| Protection Level | Double-side IP67 | Double-side IP67 | Double-side IP67 | Double-side IP67 | Double-side IP67 | Double-side IP67 |
