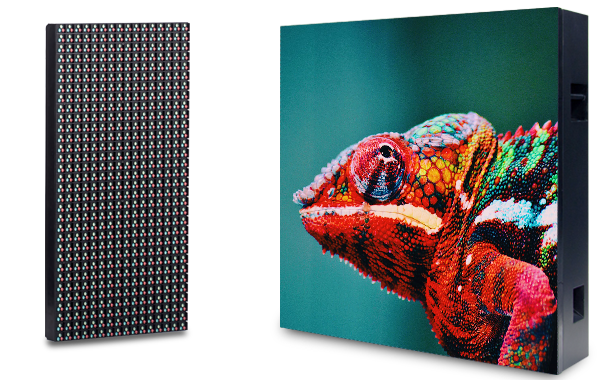

Coral Series
Outdoor fixed installation series, custom size.
Coral series can be manufactured in multiple different cabinet sizes
to best fit your unique outdoor LED display installation.
Utilizing an intelligent auto correcting light sensor control system, your outdoor LED screen installation will be the perfect brightness at all hours of the day to maximize the eyes on your screen.
| Model No. | TC10(Outdoor） | TC16(Outdoor） |
|---|---|---|
| Pixel Pitch | 10mm | 16mm |
| LED | DIP346,1R1G1B | DIP346,1R1G1B |

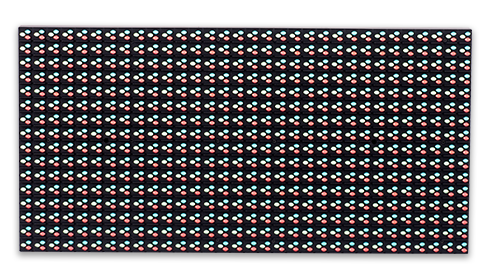

| Module Size（mm） | 320 * 160 | 320 * 160 |
| Module Resolution（dots/㎡） | 32 * 16 | 20 * 10 |
| Pixel Density | 10,000dots/m² | 3906dots/m² |

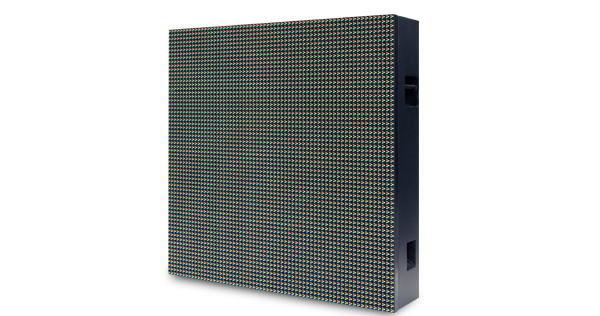

| Cabinet Size（mm） | 960 * 960 | 960 * 960 |
| Cabinet Resolution（dots/㎡） | 96 * 96 | 60 * 60 |
| Support hanging or not | Yes | Yes |
| Best Viewing Angle | H：120° W：60 | H：120° W：60 |
| Max Power Consumption | 680 W/m² | 600 W/m² |
| Average Power Consumption | 230 W/m² | 200 W/m² |
| Grey Scale | 14 bits | 14 bits |
| Driving Method | 1/4scan | Static state |
| Refresh Rate | 3600 Hz | 3600 Hz |
| Brightness（cd/㎡） | 7500 | 8000 |
| Protection Level | IP65 | IP65 |
