Trulite Rainbow
The leader of Indoor 16/9 HD display.
Weight
Thickness

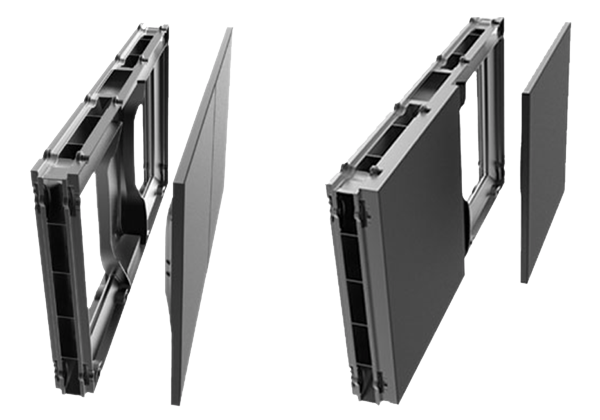

Magnetic module design， makes front／rear maintenance fast and easy.

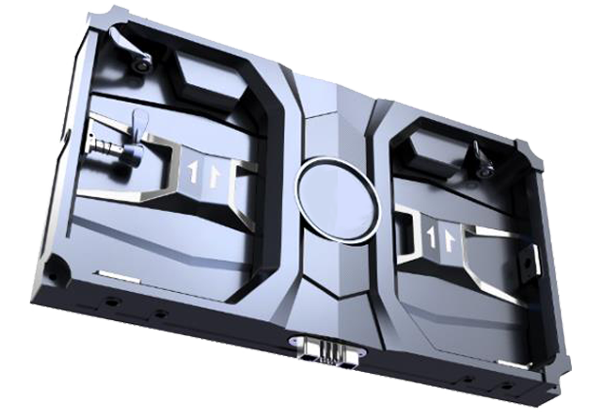

Die cast aluminum module and die cast aluminum cabinet , precise and flatness，less heat.

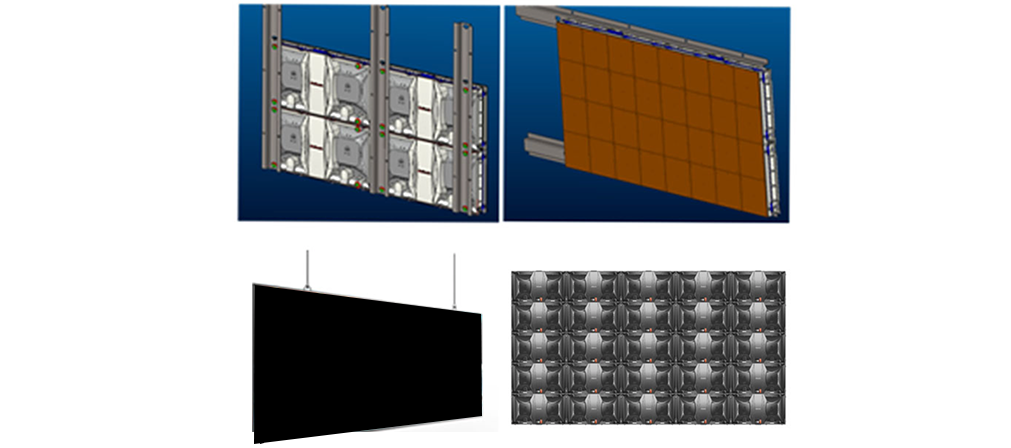

wireless design , elegant appearance ,easy to installation.

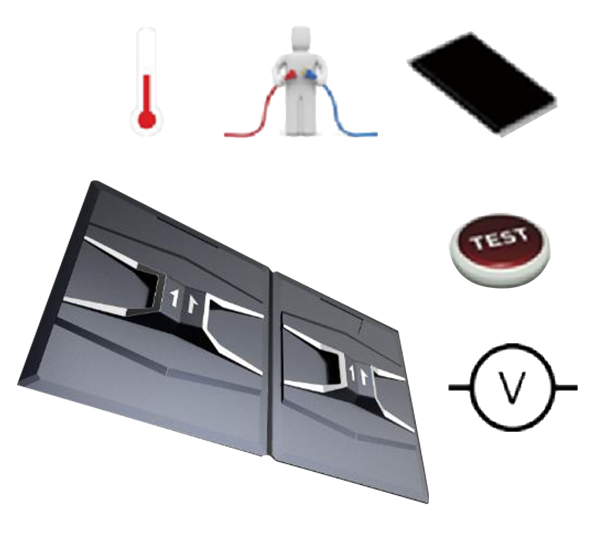

Monitor system，with intelligent module.
led module, voltage, signal and power cable,temperature are automatically monitored.
| Model No. | TR1.2(Indoor） | TR1.5(Indoor） | TR1.8(Indoor） | TR2.5(Indoor） |
|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.5625mm | 1.875mm | 2.5mm |
| LED | SMD1010 | SMD1010 | SMD1515 | SMD2020 |
| Module Resolution（dots/㎡） | 120 * 135 | 96 * 108 | 80 * 90 | 60 * 68 |
| Pixel Density | 640000 dots/m² | 409600 dots/m² | 284444 dots/m² | 160000 dots/m² |
| Cabinet Resolution（dots/㎡） | 480x270 | 384x216 | 320x180 | 240x135 |
| Support hanging or not | YES | YES | YES | YES |
| Best Viewing Angle | H:140°V：120° | H:140°V：120° | H:140°V：120° | H:140°V：120° |
| Max Power Consumption | ≤800w/m² | ≤800w/m² | ≤800w/m² | ≤800w/m² |
| Average Power Consumption | ≤280w/m² | ≤280w/m² | ≤280w/m² | ≤280w/m² |
| Grey Scale | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
| Driving Method | 1/27 scan | 1/27 scan | 1/30 scan | 1/16 scan |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Brightness（cd/㎡） | ≥900 nits | ≥900 nits | ≥900 nits | ≥900 nits |
| Protection Level | IP30 | IP30 | IP30 | IP30 |
