Fluorite series
Outdoor pixel fixed installation series,several sizes options
high color uniformity&fine quality&display perfect images.
Weight

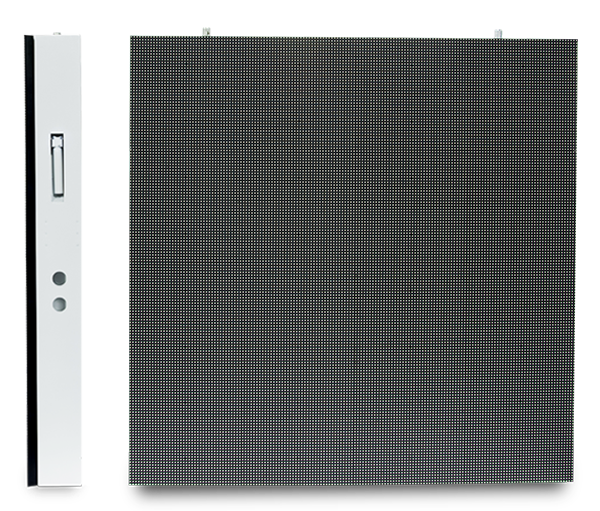

Thickness

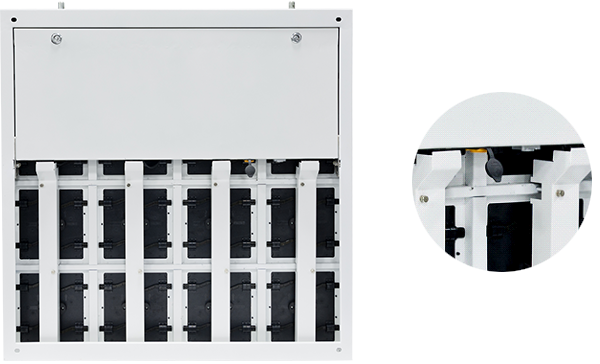

Aluminum with plastic frame of the module Open back cabinet with fan-less design,noiseless,good for the heat dissipation. Special design of energy efficient,Low power consumption.
High-end module,monitor function and calibration memory inside module
it can monitor the signal,flat cable,voltage,and drive IC automatic,and modules are identical.

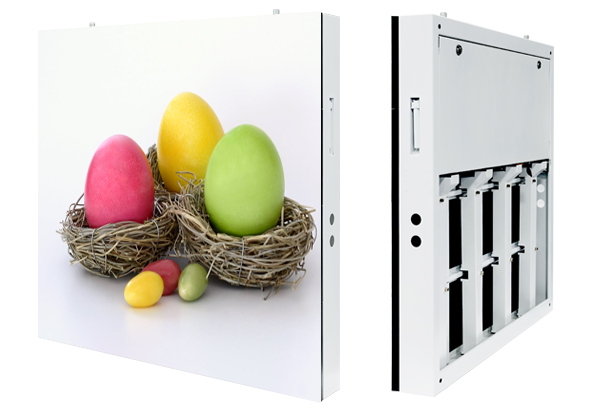

The boxes can be customized to a variety of sizes.

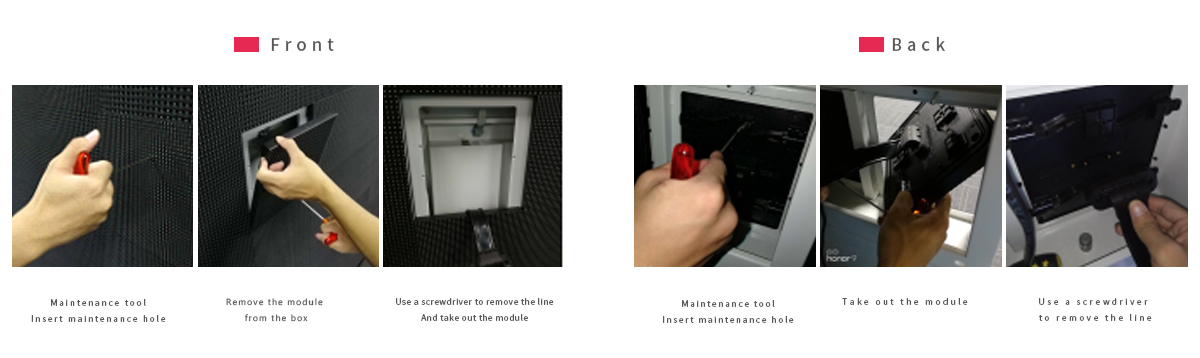

Quick plug design, high installation efficiency
| Model No. | TF6（Outdoor） | TF8（Outdoor） | TF10（Outdoor） |
|---|---|---|---|
| Pixel Pitch | 6mm | 8mm | 10mm |
| LED | SMD2727 | SMD2727 | SMD2727 |
| Module Size（mm） | 240 * 240 | 240 * 240 | 240 * 240 |
| Module Resolution（dots/㎡） | 40 * 40 | 30 * 30 | 24 * 24 |
| Pixel Density | 27,777dots/m² | 15,625dots/m² | 10,000dots/m² |
| Cabinet Size（mm） | 960 * 960 | 960 * 960 | 960 * 960 |
| Cabinet Resolution（dots/㎡） | 160 * 160 | 120 * 120 | 96 * 96 |
| Support hanging or not | YES | YES | YES |
| Best Viewing Angle | H：140° W：140° | H：140° W：140° | H：140° W：140° |
| Max Power Consumption | 950 W/m² | 950 W/m² | 950 W/m² |
| Average Power Consumption | 320 W/m² | 320 W/m² | 320 W/m² |
| Grey Scale | 14 bits | 14 bits | 14 bits |
| Driving Method | 1/5scan | 1/3scan | 1/2scan |
| Refresh Rate | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Brightness（cd/㎡） | 6000 | 6000/8000 | 6000/8000 |
| Protection Level | IP65 | IP65 | IP65 |
