Black Stone

Indoor and outdoor die-casting aluminum Rental series, light and slim, fast & easy installation, curved splicing available, perfect visual effect, which makes your stage more stunning.
Designd|Maintenance|Installation|Splicing|Scope of ues|Hanging|Specification

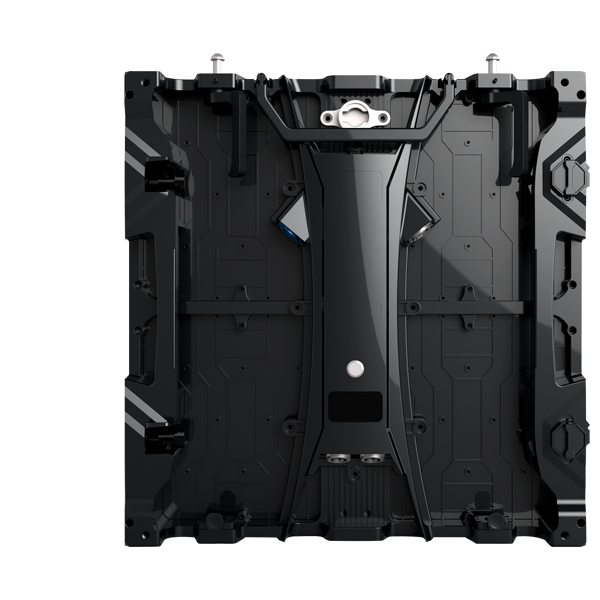

APPEARANCE DESIGN

Combined with the latest design concept, the cabinet structure is simple and generous.
500 mm x 500mm die-casting aluminum cabinet size, Indoor and outdoor share the same cabinet. weight 8kg (indoor) and 9kg (outdoor).

8/9kg

Weight


64mm

Thickness

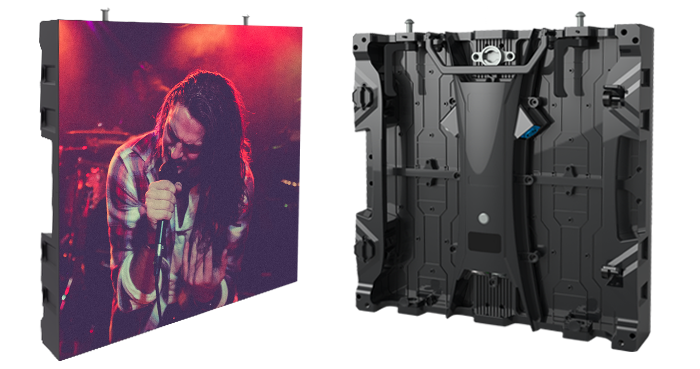

MAINTENANCE


Hot swappable design for the module and the power box.

Which makes the maintain quicker and easier .and it is less failure rate.

INSTALLATION


Toolless design for all of the assembly work , including the left to right ,up and down ,and the cabinets to cabinets .one person can do the assembly work.Rotary Button, which makes installation fast and easy, especially when make a curved screen.



SPLICING


It can be planar and arc splicing.


Which can be achieved -15,-10, -5, -2.5, 0, +2.5 ,+5, + 10 ,+15degree arc connections.

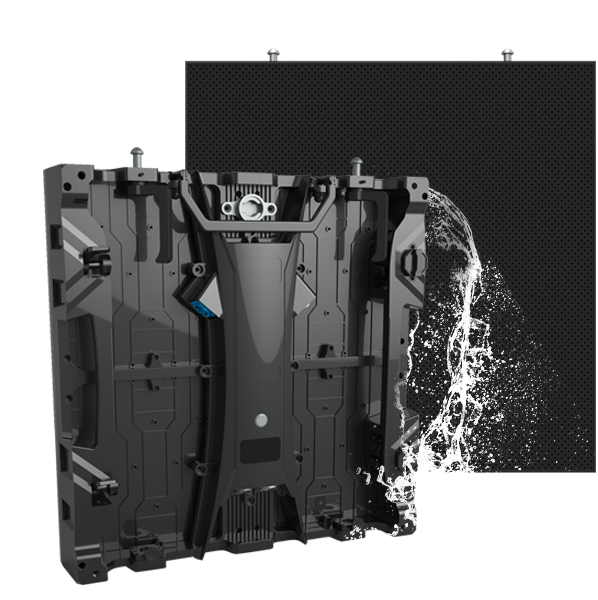

SCOPE OF USE

Indoor & Outdoor Rental use, it can be IP 65, full waterproof.

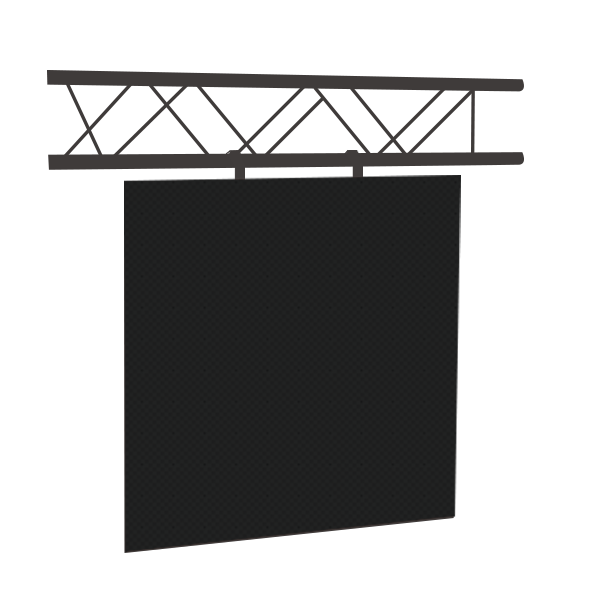

HANGING & STACKING

TECHNICAL PARAMETERS

Model No. TB2.5(Indoor） TB2.9(Indoor） TB3.9(Indoor） TB4.8(Indoor） TB3.9(Outdoor） TB4.8(Outdoor）
Pixel Pitch 2.5mm 2.9mm 3.9mm 4.8mm 3.9mm 4.8mm
LED SMD2020 SMD2020 SMD2020 SMD2020 SMD1921 SMD1921
Module Resolution（dots/㎡） 100 * 100 84 * 84 64 * 64 52 * 52 64 * 64 52 * 52
Pixel Density 160,000dots/m? 113,367dots/m? 65536dots/m? 43264dots/m? 65536dots/m? 43264dots/m?
Cabinet Resolution（dots/㎡） 200 * 200 168 * 168 128 * 128 104 * 104 128 * 128 104 * 104
Support hanging or not YES YES YES YES YES YES
Best Viewing Angle H：140° W：140° H：140° W：140° H：140° W：140° H：140° W：140° H：140° W：140° H：140° W：140°
Max Power Consumption 840 W/m? 840 W/m? 840 W/m? 840 W/m? 840 W/m? 840 W/m?
Average Power Consumption 280 W/m? 280 W/m? 280 W/m? 280 W/m? 280 W/m? 280 W/m?
Grey Scale 14 bits 14 bits 14 bits 14 bits 14 bits 14 bits
Driving Method 1/25scan 1/21scan 1/16scan 1/13scan 1/16scan 1/7scan
Refresh Rate >1920 Hz >1920 Hz >1920 Hz >1920 Hz >1920 Hz >1920 Hz
Brightness（cd/㎡） >1000 >1000 >1000 >1000 >2600/4500 >2600
Protection Level IP20 IP20 IP20 IP20 IP65 IP65
