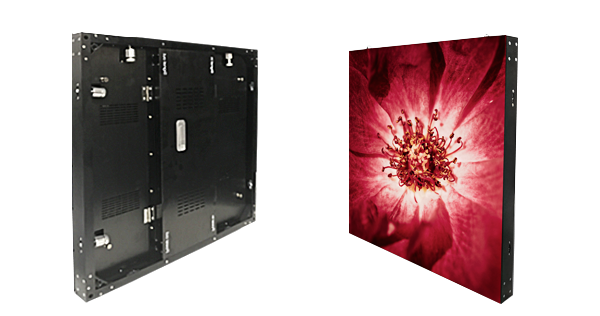

Topaz Series

Indoor fixed installation series,several size options, high color uniformity,fine quality, display perfect images.

Cabinet size can be customized.
500*500, 500*1000 750*1000 are all available.

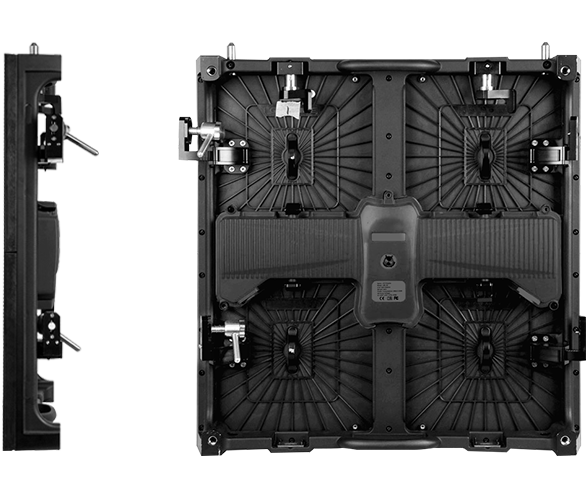

Fast installation, super light & slim, and seminal location pins, makes the installation faster and easier.

: Easy maintenance, the magnetic module design, can achieve front & rear service, you can do the maintenance easily.

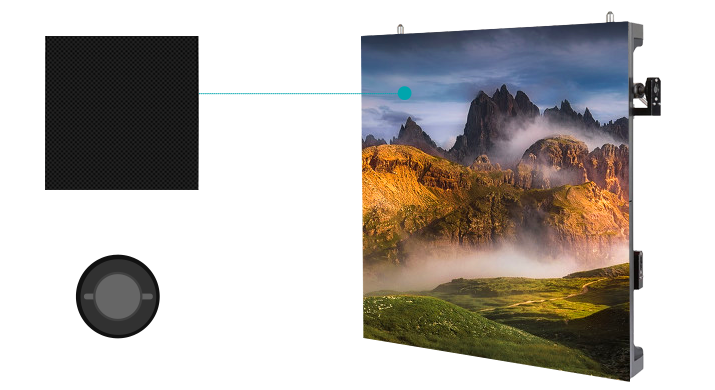

High-end module, monitor function and calibration memory in the magnetic module.

and modules are identical(no difference between left and right).

High uniformity and wide angle vision give you a perfect picture.
which is suitable for all kinds of occasions.

Model No.	UT2.9（Indoor）	UT3.9（Indoor）	UT4.8（Indoor）	UT6.25（Indoor）
Pixel Pitch	2.9mm	3.9mm	4.8mm	6.25mm
LED	SMD2020	SMD2020	SMD2020	SMD3528
Module Resolution（dots/㎡）	84 * 84	64 * 64	52 * 52	40 * 40
Pixel Density	112896dots/m?	65536dots/m?	43264dots/m?	25600dots/m?
Cabinet Resolution（dots/㎡）	168 * 168/168* 336	128* 128/128 * 256	104 * 104/104 * 208	80 * 80/80* 160
Support hanging or not	YES	YES	YES	YES
Best Viewing Angle	H：140° W：140°	H：140° W：140°	H：140° W：140°	H：140° W：140°
Max Power Consumption	840 W/m?	840 W/m?	840 W/m?	840 W/m?
Average Power Consumption	280 W/m?	280 W/m?	280 W/m?	280 W/m?
Grey Scale	14 bits	14 bits	14 bits	14 bits
Driving Method	1/21scan	1/16scan	1/13scan	1/10scan
Refresh Rate	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz
Brightness（cd/㎡）	≥1000	≥1000	≥1000	≥1000
Protection Level	IP20	IP20	IP20	IP20
