Rainbow series

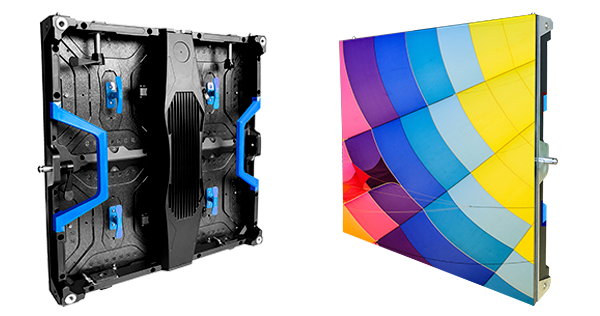

Indoor and outdoor die-casting aluminum lease series, light and thin, convenient installation, curved splicing, perfect visual effect, make your stage even more amazing.
Weight
Thickness

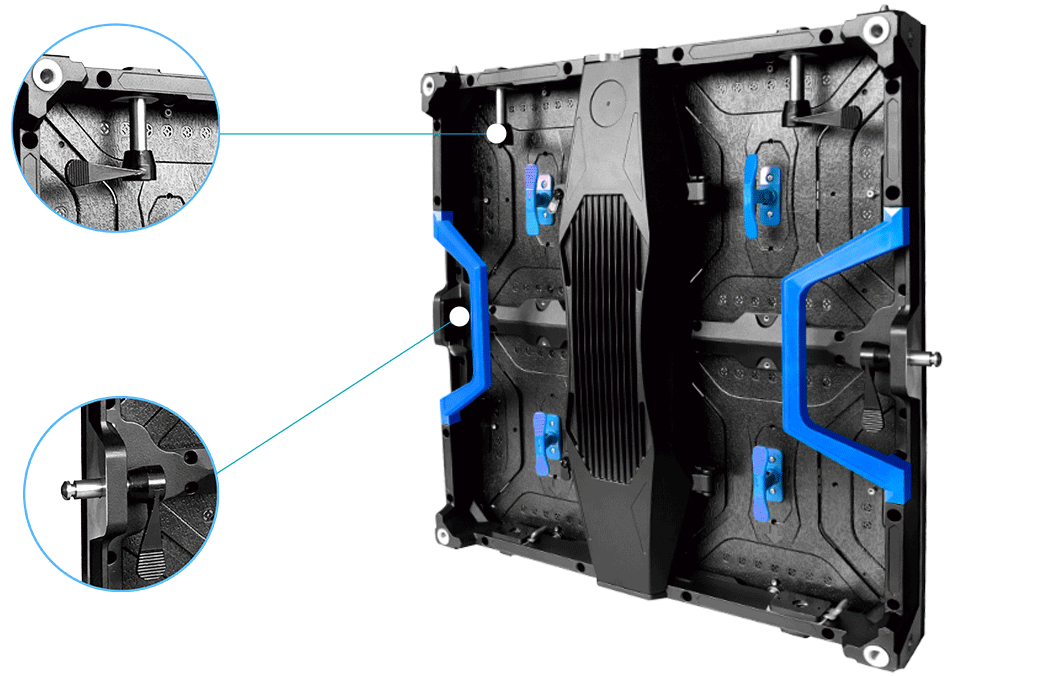

The cabinet has the mounting hole on the front, which can be installed from front and back.
Ergonomic handles, with two cabinet handles on the left and right of the cabinet and four module handles on each module, which makes it easier to move , install and disassemble.
Or it is available to remove module from the back after removing the power supply base. Fast maintenance.
It can be planar and arc splicing,
which can be achieved -10, -5, 0, + 5, + 10 degree arc connections.
Indoor & Outdoor Rental use, it can be IP 65, full waterproof.
Indoor fixed installation, which is fast maintenance and saving artificial person cost.
| Model No. | UR2.5(Indoor） | UR2.9(Indoor） | UR3.9(Indoor） | UR4.8(Indoor） | UR3.9(Outdoor） | UR4.8(Outdoor） |
|---|---|---|---|---|---|---|
| Pixel Pitch | 2.5mm | 2.9mm | 3.9mm | 4.8mm | 3.9mm | 4.8mm |
| LED | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Module Resolution（dots/㎡） | 100 * 100 | 84 * 84 | 64 * 64 | 52 * 52 | 64 * 64 | 52 * 52 |
| Pixel Density | 160,000dots/m? | 113,367dots/m? | 65536dots/m? | 43264dots/m? | 65536dots/m? | 43264dots/m? |
| Cabinet Resolution（dots/㎡） | 200 * 200 | 168 * 168 | 128 * 128 | 104 * 104 | 128 * 128 | 104 * 104 |
| Support hanging or not | YES | YES | YES | YES | YES | YES |
| Best Viewing Angle | H：140° W：140° | H：140° W：140° | H：140° W：140° | H：140° W：140° | H：140° W：140° | H：140° W：140° |
| Max Power Consumption | 840 W/m? | 840 W/m? | 840 W/m? | 840 W/m? | 840 W/m? | 840 W/m? |
| Average Power Consumption | 280 W/m? | 280 W/m? | 280 W/m? | 280 W/m? | 280 W/m? | 280 W/m? |
| Grey Scale | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits |
| Driving Method | 1/25scan | 1/21scan | 1/16scan | 1/13scan | 1/16scan | 1/7scan |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness（cd/㎡） | >1000 | >1000 | >1000 | >1000 | >2600/4500 | >2600 |
| Protection Level | IP20 | IP20 | IP20 | IP20 | IP65 | IP65 |
